Examples

Supported data types

Bit
UInt8
SInt8
UInt16
SInt16
UInt32
SInt32
Float32
Float64
SInt48
UInt48
SInt64
UInt64

Supported Modbus functions

Function Code
ReadCoils 1
ReadDiscreteInputs 2
ReadHoldingRegister 3
ReadInputRegister 4
Function Code
WriteSingleCoil 5
WriteMultipleCoils 15
WriteSingleRegister 6
WriteMultipleRegisters 16
modbus-params.txt
 --sourceType MervisDb
 --projId ecd6fa5d-78c1-4120-9b11-23521bee7688
 --projName "AnyNameWouldDoModbus"
 --projTimeZone "Europe/Prague"
--mdbConnStr "rcwaredb://uuuuuser:ppppasword@db.mervis.info:443/?protocol=https,endpoint=RcWareDbHttpsAccess,uriaccess=db/imports5/RcWareDbAccess"
--mdbDpNameKey {FixedName}
--mdbSourceKeys "(Root|ahoj|true)"
 --mdbTreeLevelKeys Level1/Level2
 --outputDirectory ecd6fa5d-78c1-4120-9b11-23521bee7688
 --useDbV2
 --mdbUnitKey Unit
 --mdbExportOnlyIdKeys

 --dbWriteModeOn
 --dbWriteModeSamplingInterval 180
 --dbEnableWriteFromDriver
 --dbWriteModeDecimals 2
 --notSortDataPoints
 --dpVisualDecimals 2
 --mdbReadGroupUpdateInterval 10

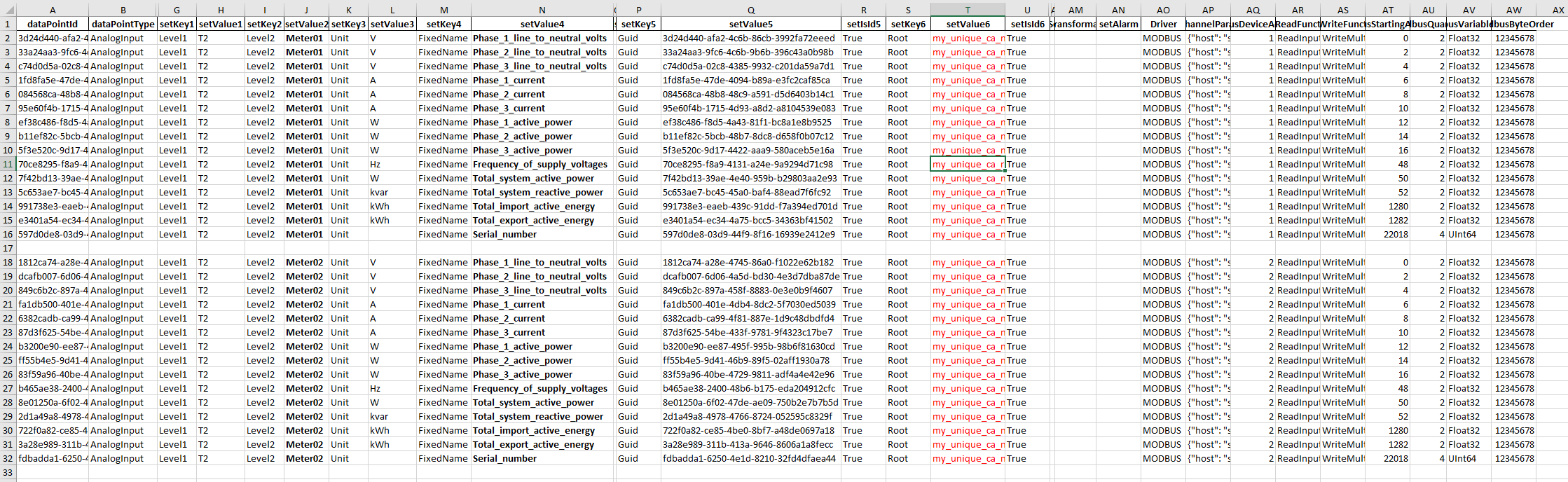

  • A well formatted mapping file needs to be created
  • Go to https://generator.mervis.info, select mapping file and paste parameters (or select .txt file)
    • Important
      • Use unique GUID for a new project
      • Use correct Mervis DB info
        • Working DB URL
        • User name, password
        • Unique “Root” key for each project
params.txt
 --sourceType MervisDb
 --projId e519e6ab-3971-4504-ba2a-9db81c723c1e
 --projName "ExampleMervisDb"
 --projTimeZone "Europe/Prague"

 --mdbConnStr "rcwaredb://uuuuuser:ppppasword@db.mervis.info:443/?protocol=https,endpoint=RcWareDbHttpsAccess,uriaccess=db/imports5/RcWareDbAccess"
 --mdbDpNameKey {FixedName}
 --mdbSourceKeys "(Root|ahoj|true)"
 --mdbTreeLevelKeys Level1/Level2
 --outputDirectory e519e6ab-3971-4504-ba2a-9db81c723c1e
 --useDbV2
 --mdbUnitKey Unit
 --mdbExportOnlyIdKeys

 --dbWriteModeOn
 --dbEnableWriteFromDriver
 --dbWriteModeDecimals 4
 --dpVisualDecimals 3

Information regarding defining SSCP driver columns in mapping file: SSCP Driver Columns (used with Driver: SSCP)

sscp-params.txt
 --sourceType MervisDb
 --projId ed18bc18-972a-457a-bc4b-fa96f3a14fb9
 --projName "ExampleSSCP"
 --projTimeZone "Europe/Prague"

 --mdbConnStr "rcwaredb://uuuuuser:ppppasword@db.mervis.info:443/?protocol=https,endpoint=RcWareDbHttpsAccess,uriaccess=db/imports5/RcWareDbAccess"
 --mdbDpNameKey {FixedName}
 --mdbSourceKeys "(Root|ahoj|true)" # is ignored
 --mdbTreeLevelKeys Level1/Level2
 --outputDirectory ed18bc18-972a-457a-bc4b-fa96f3a14fb9
 --useDbV2
 --mdbUnitKey Unit
 --mdbExportOnlyIdKeys

 --dbWriteModeOn
 --dbEnableWriteFromDriver
 --dbWriteModeDecimals 4
 --dpVisualDecimals 3
  • The Project Generator connects to the PLC through a proxy. The project is generated using metadata downloaded from the PLC.
  • Go to https://generator.mervis.info, enter the parameters (or select a .txt file).
    • Important
      • Use a unique GUID for a new project.
plc-params.txt
--sourceType SharkPlc
--projId f6f6cfdd-7b7e-4fef-94ad-1cc573c4919f
--projName "ExamplePLC"
--projTimeZone Europe/Prague
--connectionType Proxy
--proxyId iiiiiii
--host proxy.mervis.info
--port 12349
--ssl true
--plcUser uuuuuuu
--plcPassword ppppppp
--mdbDpNameKey {VariableName}
--mdbUnitKey Unit
--outputDirectory f6f6cfdd-7b7e-4fef-94ad-1cc573c4919f
  • In addition to using DB-net via the Mervis service Amit Proxy, Amit now offers native support for the Mervis CloudAccess technology and its own WebSocket protocol directly in the latest controllers.
  • The Mervis SCADA project is generated solely using an Excel mapping XLSX file, which must contain all the necessary data for creating all data points.
  • You can generate the mapping file using the helper application AmitWebSocketUtil.exe directly from the project uploaded to the PLC
  • Procedure
    • Configure communication to the CloudAccess server in the PLC: DetStudio - CloudAccess configuration
    • Generate a CSV file based on the example below and save it as XLSX
      • Optionally adjust the file according to your needs
    • Go to https://generator.mervis.info, enter the parameters (or select a .txt file) and upload your XLSX mapping file
run.bat
.\AmitWebSocketUtil.exe ^
--host cloudaccess.mervis.info ^
--port 23000 ^
--use-cloud-access true ^
--ca-channel iiiii^
--ca-user uuuuu ^
--ca-password ppppp ^
--output-file amit_websocket_variables.csv ^
--hash-string AmitWSTest ^
--comm-params "{\"host\": \"cloudaccess.mervis.info\", \"port\": 80, \"useCloudAccess\": \"true\", \"cloudAccess\": {\"host\": \"cloudaccess.mervis.info\",   \"port\": 23000,   \"ssl\": \"true\",   \"channelId\": \"iiiii\",   \"user\": \"uuuuu\",   \"password\": \"ppppp\"}"
plc-params-amit.txt
 --sourceType MervisDb
 --projId f481fd8d-fb10-443f-9747-62458e42aaa
 --projName "amit-ws-test"
 --projTimeZone "Europe/Prague"
 --mdbConnStr "rcwaredb://amit_ws_example:amit_password@db.mervis.info:443/?protocol=https,endpoint=RcWareDbHttpsAccess,uriaccess=db/imports4/RcWareDbAccess"
 --mdbDpNameKey {FixedName}
 --mdbSourceKeys "(Foo|bar|false)"
 --mdbTreeLevelKeys {FixedLevel1}

 --mdbExportOnlyIdKeys
 --outputDirectory f481fd8d-fb10-443f-9747-62458e424aaa
 --useDbV2
 --mdbCommErrorIntervalMultiple 2000
 --dbWriteModeOn
 --dbWriteModeSamplingInterval 180
 --dbWriteModeDecimals 2
