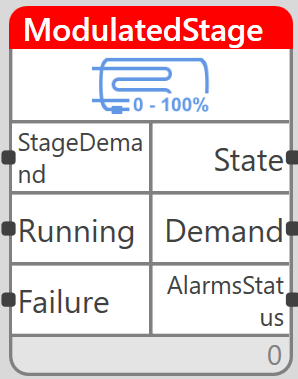

Modulated Source (v1.0)
Full Name
Lib.Mervis.v1_0.ModulatedStage
Description
Block used for controlling the performance of a general modulated source.
Required Project References
- Lib.Mervis
Usage in ST
program test var modulatedStage: lib.mervis.v1_0.ModulatedStage; end_var modulatedStage(); end_program
Description of Inputs and Outputs
Inputs | Name | Data Type | Retain | Required Connection | Meaning |
OperatingMode | Lib.Mervis.v1_0.OperatingModeType | Yes | No | Source operating mode | |
ManualPower | real | Yes | No | Source power in manual mode | |
StageDemand | Lib.Mervis.v1_1.StageControlType | No | Yes | Combined demand from the cascade controller | |
Running | bool | No | No | Feedback signal of source operation | |
Failure | bool | No | No | Feedback signal of source failure | |
ResetRuntime | bool | No | No | Reset runtime hours | |
Xp | real | No | No | PI controller - proportional band | |
Ti | real | No | No | PI controller - integral time | |
FailureDelay | time | No | No | Interval waiting for active source operation feedback | |
FailureCountLimit | uint | No | No | Number of consecutive source errors before it is permanently marked as non-functional | |
FailureTimeout | time | No | No | Time after an unsuccessful source start before retrying | |
LimitingXp | real | No | No | PI controller for limiting the maximum output temperature - proportional band | |
LimitingTi | real | No | No | PI controller for limiting the maximum output temperature - integral time | |
RunTimeSource | Lib.Mervis.v1_0.RunTimeSourceType | No | No | Determines how the source runtime hours are counted |
Outputs | Name | Data Type | Meaning |
State | Lib.Mervis.v1_1.StageInfoType | Combined source state to the cascade controller | |
Demand | real | Required source power | |
RunTimeInHours | udint | Source runtime in whole hours | |
FailureOutput | bool | Source fault | |
AlarmsStatus | Lib.Mervis.v1_0.AlarmsStatus | Combined interface for alarm indication | |
RunTime | time | Source runtime |
Blocks | Name | Data Type | Meaning | ||||||||
FailureFb | Lib.Mervis.v1_0.FailureDetector | Block for evaluating source failure | |||||||||
Alarms | Lib.Mervis.v1_0.AlarmsExtender1 | Alarm function block | Alarm Input | Priority | Meaning | Alarm1 | 32/33 | Source fault |
Detailed Function Description
TODO
